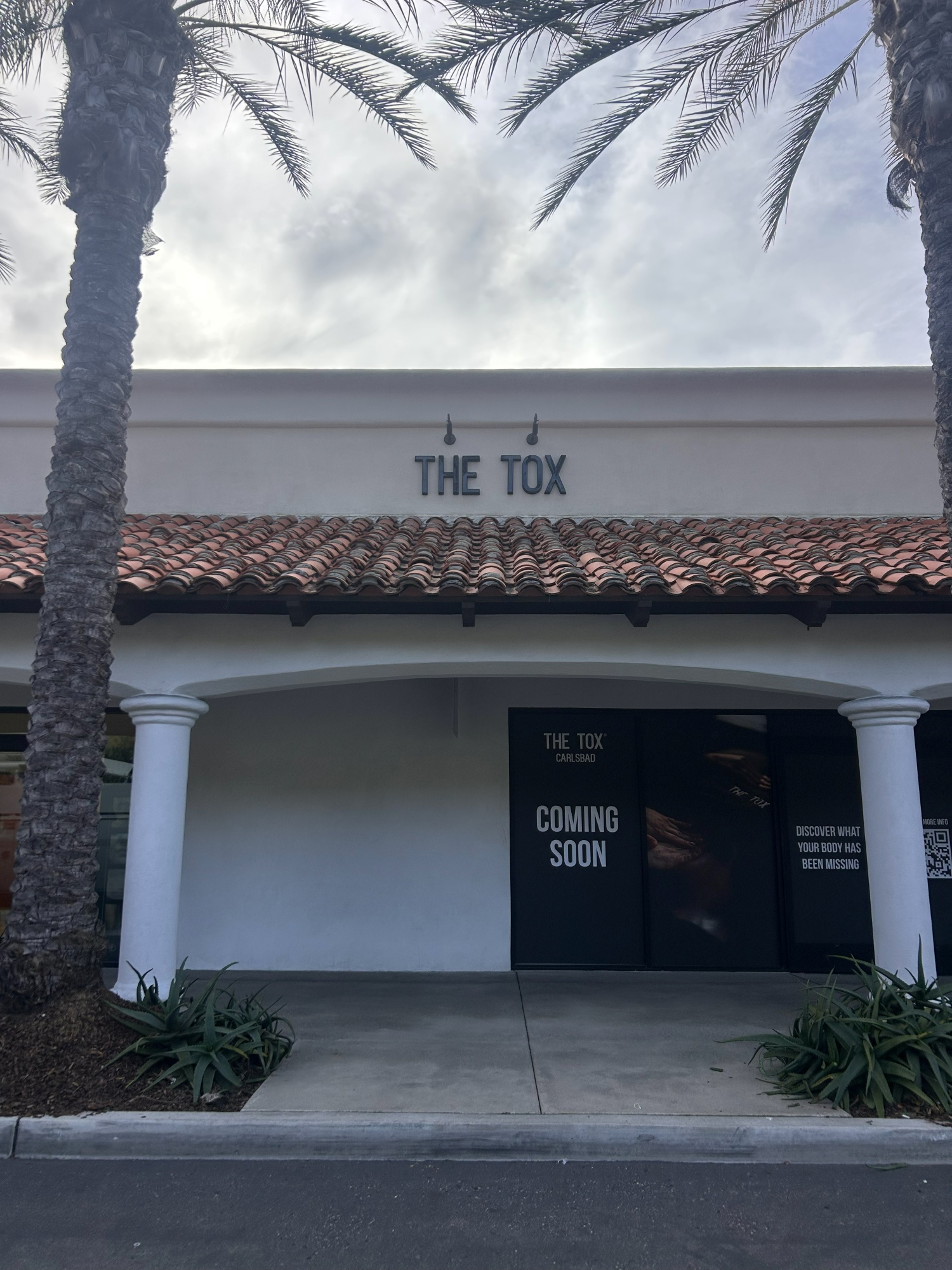

Sunlight does something to a flat vinyl letter on a building wall that most people register without thinking about it. The letter sits flush against the surface, and light hits both the letter and the wall at the same angle, so the eye processes them as one plane. The letter doesn’t separate from the building; it merges with it. At twenty-five feet or from a moving car, that flat letter disappears into the stucco the same way a sticker disappears into a notebook cover. North Coast Signs is based in Vista, and we fabricated dimensional letters for The Tox’s new Carlsbad building sign specifically because a flat application couldn’t do what this storefront needed from the street.
Forming Plastic Over Custom Molds
Each letter starts as a flat sheet of plastic that gets heated until it’s pliable, then vacuum-formed over a custom mold shaped to the exact character. The vacuum pulls the heated material tight against the mold surface, creating a hollow three-dimensional letter with uniform wall thickness and clean edges on every side. That uniformity matters because inconsistent wall thickness shows up as uneven light absorption across the letter face, and the eye picks up those variations even if the viewer can’t name what looks off. Formed plastic letters have solid returns, which are the vertical side walls that give each character its depth, and those returns are what cast the shadows that make the sign readable at a distance.
Why Two Inches of Depth Changes Visibility
Two inches of projection off the building face creates a shadow line on the wall behind each letter. In early morning and late afternoon, those shadow lines stretch and widen, adding visual weight that makes the letters appear larger than their actual dimensions. Under flat overcast light, the 2″ depth still produces enough relief that each character reads as a separate object from the wall surface. A shallower letter, say half an inch, sits so close to the building that its shadow barely registers, and the dimensional effect collapses into something that looks almost flat from across a parking lot.
Square Edges on a Modern Facade
The edge profile of a dimensional letter affects how it photographs and how it reads at angles. Rounded returns soften the character shape, which blurs the silhouette when a viewer sees the sign from the side rather than straight on. Square returns hold a crisp profile from every approach angle because the flat vertical face meets the letter face at a clean ninety-degree line. On newer Carlsbad retail facades with angular architectural lines, square-edged letters align with the building’s geometry rather than fighting it. We formed The Tox’s letters with square returns because the storefront’s facade demanded that sharp, deliberate profile.
Matte Finish on a Curved Letter Face
Every dimensional letter has a slightly curved front surface from the forming process, and that curve interacts with light differently than a flat plane. A gloss finish on a curved surface creates a moving hotspot; as you walk past, the reflection slides across the letter’s face and obscures the shape at certain angles. Matte finish absorbs and scatters incoming light so the letter reads with a consistent tone whether you’re standing directly below, approaching from the side, or driving past at speed. We spec matte on formed plastic letters because the finish has to perform in every lighting condition Carlsbad puts it through, from direct coastal sun to overcast marine layer.
Setting Stud Depth to Wall Composition
Each letter mounts individually to the building face on threaded studs set into anchors. We pin a full-size paper template to the wall, mark every stud position through the template, drill, anchor, and mount. The template locks letter spacing, baseline alignment, and kerning so the finished word reads as a single, cohesive piece. Stud depth is where most installs quietly fail: too short and the letter wobbles in the wind; too long and a gap opens behind the letter face where dirt and moisture collect. We measure through the stucco to the sheathing and framing to set each stud so the letter seats firm against the wall with no play and no gap.
Dimensional Letters That Earn Their Place on the Wall
North Coast Signs in Vista fabricates formed plastic dimensional letters for Carlsbad building signs using vacuum molds, square-edge returns, matte finish, paper-template mounting, and stud depths measured to the wall structure. If your building needs letters that separate from the facade and hold their visibility from the street through every hour of daylight, call (760) 536-5454 and we’ll start with the wall composition and work forward from there.
