A dip in the headlights at idle traces back to different hardware on a Camry Hybrid than it does on a gas Camry. The gas car charges through a belt-driven alternator that sits right behind those dimming lights. From the driver’s seat the symptom looks the same either way, with the lights dropping at a stoplight and brightening the moment the engine speeds up, and with a radio that resets itself and a window that crawls down slowly the same week. That reads like a dying battery, and it is a fair read, because the battery is one part of the system that can fall short. At Driven Auto Care of San Ramon we treat the whole pattern as a charging question, and we settle which Camry we have before we pick a test. Both versions go on the meter the same day.
The Car Still Starts While Both Parts Wear Down
That battery-shaped light on the dash belongs to the charging system, and the battery is only one of the things that can switch it on. The alternator, the belt, a connection or the battery itself can each set that lamp. The car still starts every morning through all of it. The battery covers the shortfall for days, so dimming lights are one of the more common early signs and the no-start arrives later. A battery test with the engine off reads the battery alone. A charging fault shows itself with the engine running and the load switched on.
Cranking the engine pulls a lot of current out of the battery, and the alternator puts it back once the engine runs. As an alternator wears, its output falls under what the car draws, and the difference comes out of the battery again. The battery ends each trip lower than it started. A weak battery then loads the alternator harder on every drive. Fit a new battery while the charging system is still down on output and it goes to work partly charged. That is why we read both parts before either one is replaced.
A Hybrid Camry Has No Alternator at All
Check which Camry you own before anything gets tested. The hybrid badge is easy to spot, and the instrument display carries an energy-flow screen the gas car does not have. A Camry Hybrid has no alternator at all, because it charges its small accessory battery from the high-voltage system through a converter. Dim lights and a lit dash lamp turn up on that car too, so the same sag on a hybrid traces back to a different part. We confirm which Camry is in front of us first, then we measure the charging path that car actually has.

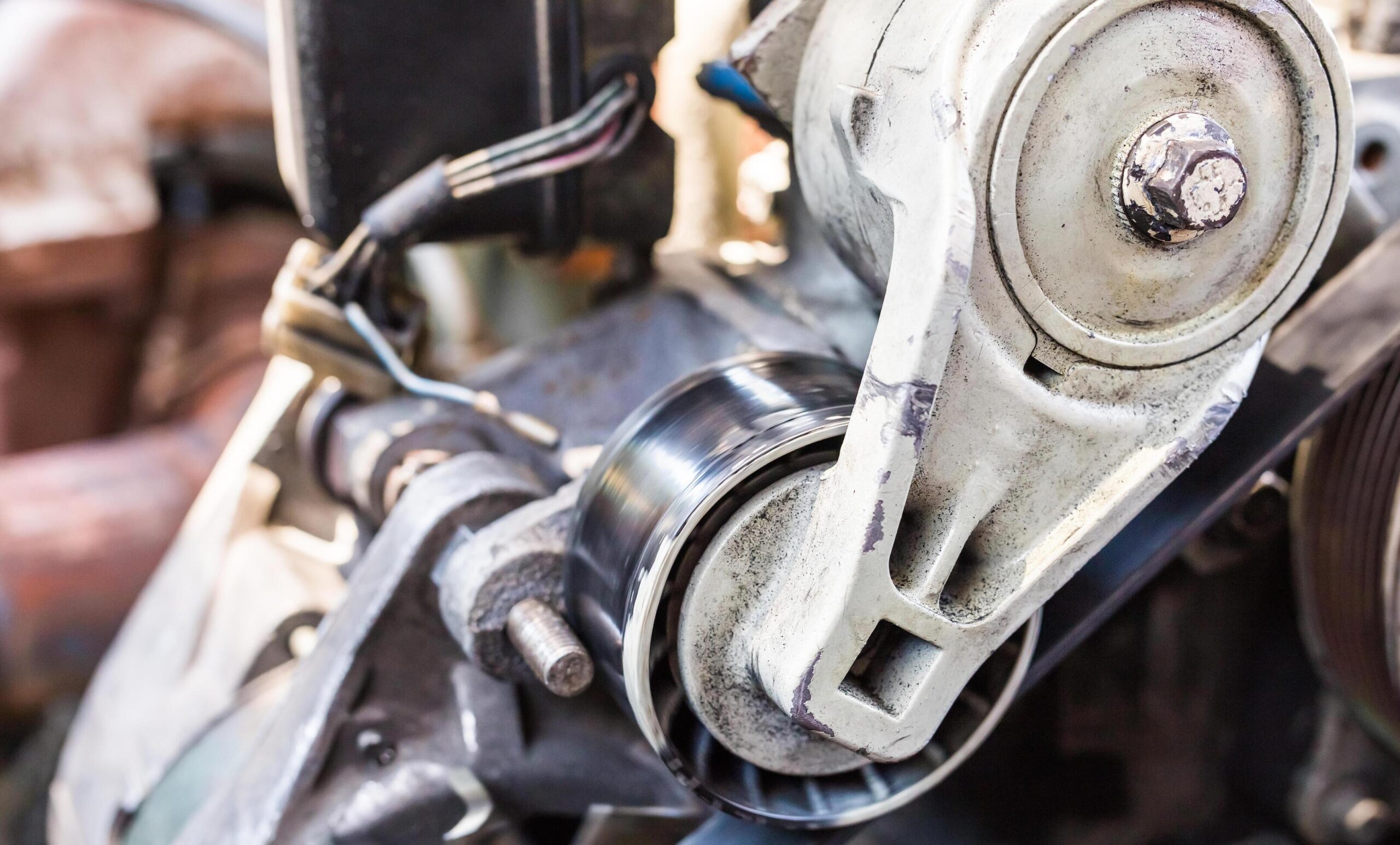

A Loose Belt Can Set That Warning Light Too
An alternator only charges when the belt turns it. A glazed or loose belt slips on the alternator pulley, and the charging fault shows up with a good alternator still on the car. You’ll usually hear that one as a squeal on a cold start or after rain. A corroded cable end or a poor ground works the other way: the alternator makes its output, and less of it reaches the battery. A fault that comes and goes over rough road moves a connection up the list. We check the belt, the cable ends and the grounds first, because each one sets a charging fault that a new alternator leaves in place.
The Load Test Changes What the Meter Shows
We read system voltage with the engine off, then at idle, then with the headlights and the rear defroster switched on. That last reading is where a marginal charging system shows itself. An alternator can hold voltage at idle and still fall short under load. We read output current too, and we compare what we get against the manufacturer’s spec for your Camry. A ripple check reads how steady that output is. An alternator that has failed partway charges on some days and not others, which is one cause behind a battery light that comes and goes.
Have Both Parts Measured in One Visit
This reading is worth taking while the Camry still starts every morning and drives the way it should. Book the battery test and the charging test as one job with Driven Auto Care of San Ramon at (925) 830-4701. We confirm which Camry we have, load-test the battery, read voltage at idle and under load, then compare voltage at the battery against voltage at the alternator. You’ll leave with the failed part named and with the reason it fell short. Your headlights will hold steady again in that same dark lot.
