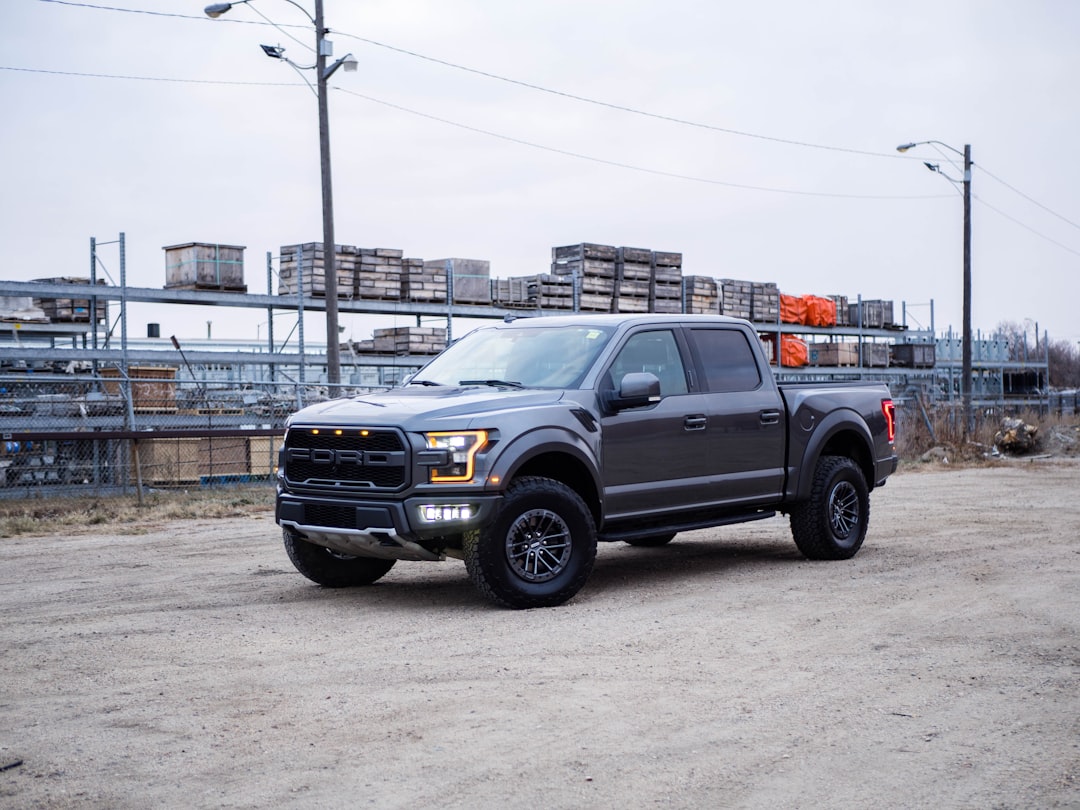

Ford has rewritten its diagnostic procedure for the 10R80 transmission six separate times since 2021, and the version your shop is using decides whether you get a real diagnosis or another educated guess. The truck is one of Ford’s most refined platforms, and the transmission inside it has a known wear pattern that Ford has tracked through a long chain of service bulletins. Driven Auto Care of Fremont, CA services Warm Springs F-150 owners, and the diagnostic conversation begins with which TSB applies to your VIN and your build date.
What’s Inside a 10R80 and Why It Wears Where It Does
The 10R80 ten-speed automatic uses a clutch cylinder called the CDF drum to engage three of the forward gears. A sleeve inside the drum can walk out of position under load, which damages a Teflon seal and lets hydraulic pressure bypass the clutch pack. Once that bypass starts, the transmission compensates by overworking the main control valve body, and the valve bores wear in patterns that mimic other failures. Harsh shifts, gear hunting, and 1-2 clunks on cold mornings are downstream symptoms of the same mechanical root cause.
Ford’s TSB Sequence Has Superseded Itself Six Times
The current bulletin, TSB 25-2126, supersedes TSB 25-2018 from February 2025, which itself replaced TSB 24-2101 from March 2024 and a chain of earlier bulletins running back to 2021. Each version updates which model years and build dates are covered and which diagnostic steps the technician should perform. Later bulletins extended coverage to 2023 F-150 builds, since revisions to the valve body and CDF drum across the 2022 and 2023 production years changed the failure pattern. A shop that reflashed your truck under an old TSB and called the job done likely never measured the bypass flow that the current procedure requires.
Build Date Matters as Much as Model Year
Two 2020 F-150s built three months apart can have different valve body castings inside the same model-year transmission. Ford revised the casting during the 2020 production run, and the affected build window runs through late December 2022 for newer trucks under the most recent bulletin. Pulling your build date from the driver-side door jamb tag and checking it against the active TSB is the verification step most shops skip entirely.
The Right Fluid Spec Is Mercon LV and Nothing Else
Ford specifies Motorcraft Mercon LV for the 10R80, and any substitution causes torque converter clutch shudder within a few thousand miles. Universal multi-vehicle ATF carries friction modifiers the 10R80’s clutch packs weren’t engineered around. A fluid change with the wrong product feels fine for the first few weeks, then the shudder starts at highway cruise and stays until the system gets flushed and refilled with the correct spec.
What a Pressure Test on the CDF Drum Actually Measures
The current procedure, TSB 25-2126, uses Ford’s VCMM pressure transducer to measure how much hydraulic fluid is bypassing the CDF drum during specific gear engagements. The leakage percentage gets entered into a Ford-supplied calculator that determines whether the drum is salvageable or needs replacement. That measurement turns a guess into a documented number.
Get the Build Date and the Bulletin Before Anyone Touches the Truck
If your F-150 has been slipping through Warm Springs commutes, get in touch with Driven Auto Care of Fremont, CA at (510) 270-3686. Bring the build date from the driver-side door jamb tag and any prior service records. We’ll match your VIN to the active TSB and run the pressure test the current procedure requires.
