Newark, CA - Is Your Mercedes-Benz AC Weak Because of a Failing Compressor?
SYNOPSIS: Fremont Foreign Auto explains how a two RPM pressure test identifies Mercedes AC faults. This helps you and fellow Newark drivers avoid costly and unnecessary compressor repair.
Weak Mercedes AC Is Usually Not The Compressor
BY: Eduardo Porta, Fremont Foreign Auto
A Newark Mercedes-Benz owner whose air conditioning blows warm at a stoplight usually walks into a shop and asks whether the compressor needs replacing. Fremont Foreign Auto in Fremont, CA hears the question from C-Class, E-Class, S-Class, and ML-Class drivers every summer, and the question almost always misses the diagnostic clue hiding inside the symptom. A better question points at the specific behavior of the weak AC itself, because a compressor that cools fine at forty miles per hour and fails only at idle is behaving in a way a broken compressor could never produce. The symptom carries a fingerprint, and the fingerprint names the guilty part before any parts get ordered.
Two RPMs, Two Pressures, One Answer

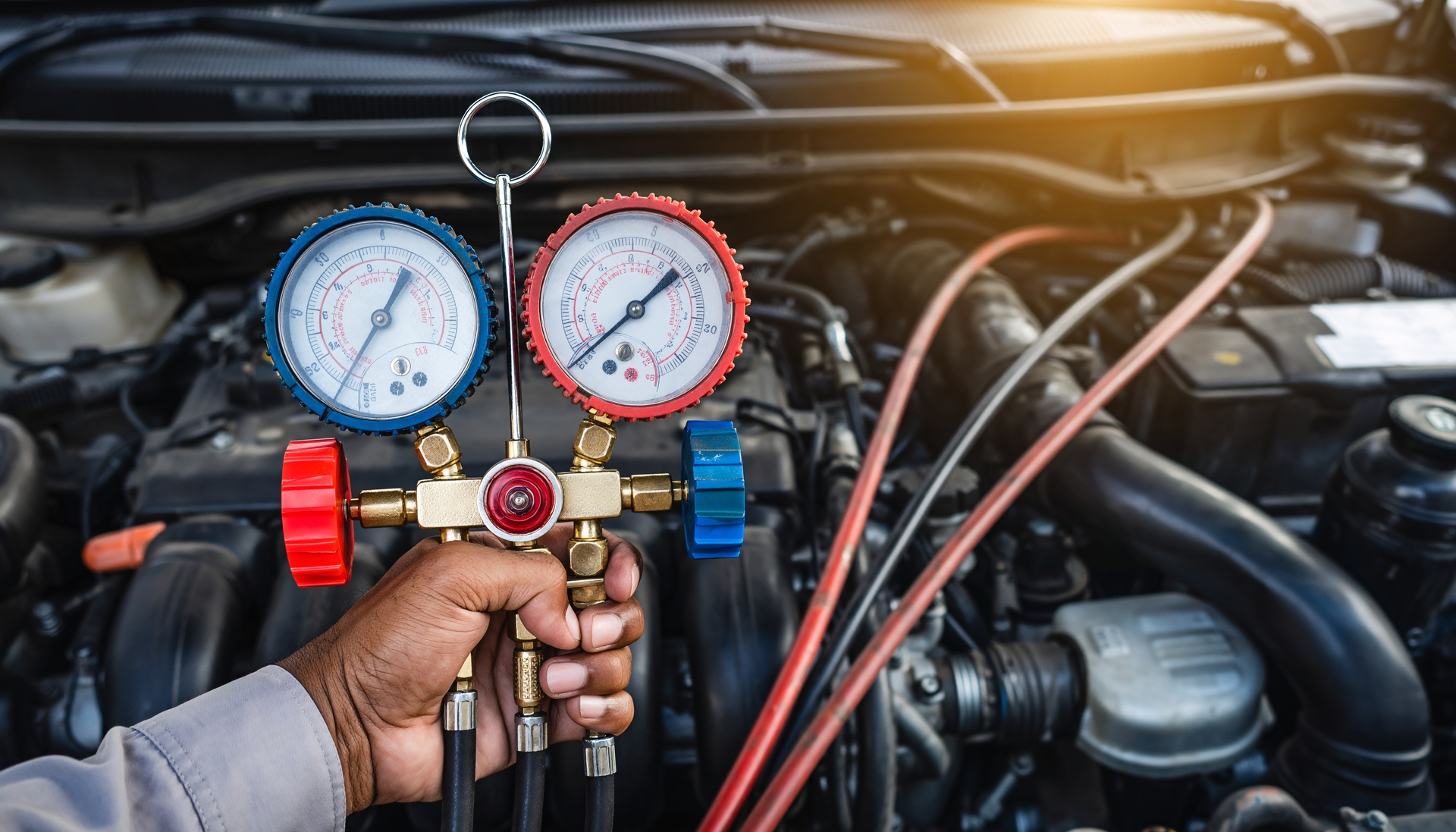

The test that cracks this case on a Mercedes-Benz AC system requires exactly two pressure readings taken sixty seconds apart. The first reading is taken at idle, with the engine running, the AC set to maximum cold, and the gauges clipped to the high- and low-side service ports. The second reading happens at around two thousand RPM under the same settings. The difference between those two readings tells a technician which component failed, because every failure mode on a variable-displacement Mercedes AC system produces a different pressure signature across that RPM change. Skipping either reading destroys the diagnostic value of the other, because a single pressure snapshot cannot distinguish between a failing control valve and a dozen other possibilities.
Variable Displacement Control Valve Is The Usual Suspect
Most Mercedes-Benz compressors from roughly two thousand three onward are variable-displacement designs, which means they change their internal stroke based on a signal from a small control valve inside the compressor body. When the control valve sticks at low output, the compressor cannot ramp up at idle and the low side pressure climbs while discharge air stays warm. Push the engine to two thousand RPM and the additional airflow through the condenser partially compensates, which is why the symptom disappears on the freeway. The fix is a control valve replacement, and the compressor itself stays on the car. Shops that quote compressors on first visit almost always do so without taking the two-RPM reading, because the reading makes the compressor quote harder to justify.
When The Fan Module Is The Hidden Villain
An auxiliary fan module that fails to command the electric condenser fans to full duty cycle at idle produces almost the same symptom as a sticky control valve. The difference shows up in the pressure readings: with a fan module failure, the high-side pressure climbs at idle rather than the low-side, because the condenser cannot reject heat without forced airflow. Evaporator temperature sensor drift, refrigerant overcharge past Mercedes-Benz specification, and a blocked condenser fin matrix all produce their own distinct pressure signatures under the two-RPM test. A properly diagnosed Mercedes AC repair names the real failure inside an hour of hands-on diagnosis.
Call For The Test Before Anyone Sells You A Compressor
(510) 793-6067 is the number to dial before approving a Mercedes-Benz compressor quote of any kind. The first conversation goes directly to the two-RPM pressure test and whether the shop quoting your compressor ever performed it. Most Newark Mercedes-Benz owners who arrive expecting a compressor replacement leave with a control valve, a fan module, or a refrigerant charge correction, because that is where the failure almost always lives. A ninety-minute diagnostic visit prevents the much longer and more expensive compressor job most quotes default to.
